High Dose Gamma Radiation Selectively Reduces GABAA-slow Inhibition



Abstract

Studies on the effects of gamma radiation on brain tissue have produced markedly differing results, ranging from little effect to major pathology, following irradiation. The present study used control-matched animals to compare effects on a well characterized brain region following gamma irradiation. Male Sprague-Dawley rats were exposed to 60 Gy of whole brain gamma radiation and, after 24-hours, 48-hours, and one-week periods, hippocampal brain slices were isolated and measured for anatomical and physiological differences. There were no major changes observed in tissue appearance or evoked synaptic responses at any post-irradiation time point. However, exposure to 60 Gy of irradiation resulted in a small, but statistically significant (14% change; ANOVA p < 0.005; n = 9) reduction in synaptic inhibition seen at 100 ms, indicating a selective depression of the gamma-aminobutyric acid (GABAA) slow form of inhibition. Population spike (PS) amplitudes also transiently declined by ~ 10% (p < 0.005; n = 9) when comparing the 24-hour group to sham group. Effects on PS amplitude recovered to baseline 48 hour and one week later. There were no obvious negative pathological effects; however, a subtle depression in circuit level inhibition was observed and provides evidence for ‘radiomodulation’ of brain circuits.

Introduction

Stereotactic radiosurgery (SRS) using gamma radiation is currently used to treat trigeminal neuralgia, primary brain tumors and metastases [1-2] and is being explored as a treatment for severe depression, obsessive-compulsive disorder (OCD), movement disorders as well as for other refractory psychiatric and central nervous system (CNS) pathologies. However, the impact of such a treatment on neurons and synaptic circuitry is poorly understood. There have been a number of studies published on how the brain responds to radiosurgery levels of radiation, yet the results have had a mixture of conclusions and the neuronal effects of irradiation remain unclear.

Some in vivo and in vitro studies suggest high dose SRS can cause neurotoxicity. Previous studies have demonstrated that neuronal degeneration can occur at 70 to 200 Gy and, at the higher doses (150 and 200 Gy), animals showed histological signs of necrosis, edema, and vessel wall thickening [3]. However, the same study, which exposed the animal’s right frontal lobe to stereotactic irradiation, with a single 4 mm isocenter, showed little to no histological changes in animals irradiated with 60 Gy or less. Pathological changes, measured by histological assessments of neuronal, glial, and vascular changes within the target and surrounding brain volume, were not present in animals that received 30, 40, 50, or 60 Gy. However, in vitro studies looking at the volume of brain subregions after irradiation have shown that neuronal death can occur after irradiation [4]. Similarily, a dose-dependent loss of neurons is noticed when looking at both neurogenesis and cellular differentiation of neurons in the hippocampal region of the brain [5]. Also, a study looking at the oxidative damage of brain tissue after a prolonged exposure (21 days before brain tissue isolation) of low-dose (0.04 Gy) radiation exposure observed an increase in oxidative stress biomarkers that could possibly lead to brain injury [6]. In contrast, a more recent histological study has shown that tissue integrity or neuron distribution was not changed a year after irradiation of 45 Gy delivered with 5 Gy fractions twice per week for 4.5 weeks [7].

There is even less clarity about post radiation outcomes in electrophysiological studies. Early studies looking at physiological responses have shown drastic changes to brain physiology at minimal dosage of irradiation. In vitro exposure to radiation with as low as 5-10 Gy appeared to significantly impair neuronal function in the hippocampal area at the synaptic level [8] as did more moderate doses of 25–75 Gy [9-10]. More specifically, the damage noted in these studies did not involve cell death, but instead there was an alteration of neuronal excitability observed as a decrease in the orthodromic population spike caused by both synaptic and postsynaptic damage in a dose and dose rate dependent manner. Both acute and long-term negative impacts on synaptic efficacy (ability of the tissue to transmit synaptic potentials) and spike generation (ability of those synaptic potentials to generate spikes) were observed. Additionally, an electrocorticogram brain activity study on rats showed changes in the pattern of recordings, particularly of the theta waves, at 24 hours and persisting to 90 days after exposure to 18 Gy of gamma radiation [11]. The scarcity and inconsistent findings from earlier electrophysiological studies was taken into consideration for the experimental design in the present study.

Behavioral studies have also shown a range of results with regard to the neurotoxicity of irradiation. Some of these studies looked at locomotive activity, place recognition, and object placement capabilities of irradiated animals. Neurocognitive decline associated with cranial irradiation can involve damage to the neural stem cell niche in the subgranular zone (SGZ) leading to a decline in neurogenesis and changes in the number of microglia resulting in hippocampal inflammation ([12]). Some of the studies found adult neurogenesis was arrested completely after brain irradiation ranging from 3 Gy to 20 Gy; and behavioral as well as cognitive impairments were noted as well [13-16]. Some of these impairments include deficits in sensorimotor function [17], novel object recognition tasks [18], associative learning [19], and reversal learning [20]. Hippocampal-dependent spatial memory deficits may be related to a disruption in neurogenesis [13] that could contribute to longer-term effects. In most studies, the observed deficits recover within weeks or months after irradiation. However, other behavioral assessment studies done on irradiated animals revealed persistent and progressive deficits in hippocampal dependent learning [21]. To further complicate the matter, there have been studies that have shown no cognitive deficits following irradiation in tests including water maze performance (hippocampal dependent learning) [14], reversal learning [22], and object recognition [14, 21]. In contrast, one study has even shown an improvement in behavioral performance in irradiated animals [23].

Other studies have also brought up results showing a complex pattern of neurobehavioral responses that make it very clear that further studies are needed to elucidate what may be going on in the brain after radiation exposure. One such study looking at cognitive deficits after a whole body exposure of gamma-radiation showed that only the low-dose exposure group (2 Gy) and not the high dose group (5 Gy and 8 Gy) had observed dysfunction in their short-term memory [24]. The same study concluded that damage to long-term memory was observed only at the highest dose group of 8 Gy. This group also used magnetic resonance imaging (MRI) and diffusion tensor imaging (DTI) to show that the hippocampus was one of the few areas in the brain heavily damaged by the whole brain irradiation. This and the other studies showing hippocampal-related radiation damage gives us a sense that the hippocampus is an important brain region for studies in this field.

In summary, histological, behavioral, and electrophysiological studies have shown variable results regarding the effect of irradiation on pathological changes in brain tissue. In large part these variable results likely come about from methodological differences between studies. Therefore, the effects of ionizing radiation on brain tissue needs to be further elucidated, and an interdisciplinary approach needs to be used to understand the underlying effects of irradiation on the brain. This paper combines both electrophysiological and histochemical methodology to explore the effects of irradiation at the neuronal and synaptic level, as a test for the hypothesis that gamma irradiation could induce non-toxic, radiomodulatory effects on synaptic transmission.

Materials & Methods

Rat brain radiation

All experiments described herein were pre-approved by the Stanford University Administrative Panel for Laboratory Animal Care. Male Sprague Dawley rats, 26 days old and 80–100 gram in body weight, were purchased from Charles River Laboratories. The rats were tested and found to be negative for specific pathogens. The rats were normally bred and maintained under specific pathogen-free conditions, and sterilized food and water were available ad libitum. The rats were randomly assigned to two groups: sham irradiation control and 60 Gy gamma irradiation. This dose of radiation was chosen to best mimic doses used in humans for experimental studies of efficacy in treating psychiatric conditions. The rats were anesthetized with an intraperitoneal injection of a cocktail solution of ketamine (70 mg/kg) and xylazine (7 mg/kg) immediately before irradiation. The anesthetized rats were then placed in individual lead boxes with the upper part of the head protruding through a cutout window at the front of each box. Radiation was delivered using a Philips RT-250 200 kVp X-ray unit (Philips, MA, USA) (12.5 mA; half-value layer, 1.0 mm Cu) at a dose rate of 140 cGy/min. The whole brain was locally irradiated with a single dose of 60 Gy. After irradiation, the rats were returned to their cage for recovery.

Brain isolation and sectioning

Both irradiated (n = 22) and sham animals (n = 31) were studied using the same protocol, including technique and surgeon for the harvesting of and preparation of brain slices. The irradiated animals were euthanized for brain slice isolation 24 hr (n = 9), 48 hr (n = 8), or one week (n = 5) after exposure to gamma radiation. The animals were anesthetized using isoflurane (three percent within a course of five minutes) and euthanized by way of decapitation. The brain was then removed from the skull while being continuously perfused by artificial cerebrospinal fluid (ACSF) consisting of the following concentrations: 124 mM NaCl, 3.5 mM KCl, 1.25 mM NaH2PO4, 2 mM MgSO4, 2mM CaCl2, 26 mM NaHCO3 and 10 mM glucose. The pH of the ACSF was 7.4 following saturation with O2/CO2 (95/5%), to mimic the ideal physiological pH level and oxygen saturation. The brain slices from these rats were prepared in accordance to National Institute of Health guidelines and procedures approved by Stanford University’s Institutional Animal Care Committee.

The brain slices were prepared using a vibratome (VT1000S, Leica Microsystems, Wetzlar, Germany) to cut transverse 400 μm thick hippocampal slices. These axial sections were further cut sagittally and placed on nitrocellulose membrane filter papers. Slices on the filter paper were then placed inside a chamber where a continuous perfusion of ACSF liquid was provided along with a humidified gas phase carbogen (95% O2/ 5% CO2). The slices were allowed to stabilize in this perfusion chamber for at least an hour before experiments were conducted. This chamber was kept at room temperature (22°C) and the experiments were also conducted at room temperature. For the experimental portion of the study, brain slices were moved to a recording chamber where they were continuously perfused at 2–3 ml/min with ACSF bubbled with carbogen (95% O2/ 5% CO2).

Electrophysiolgical recordings

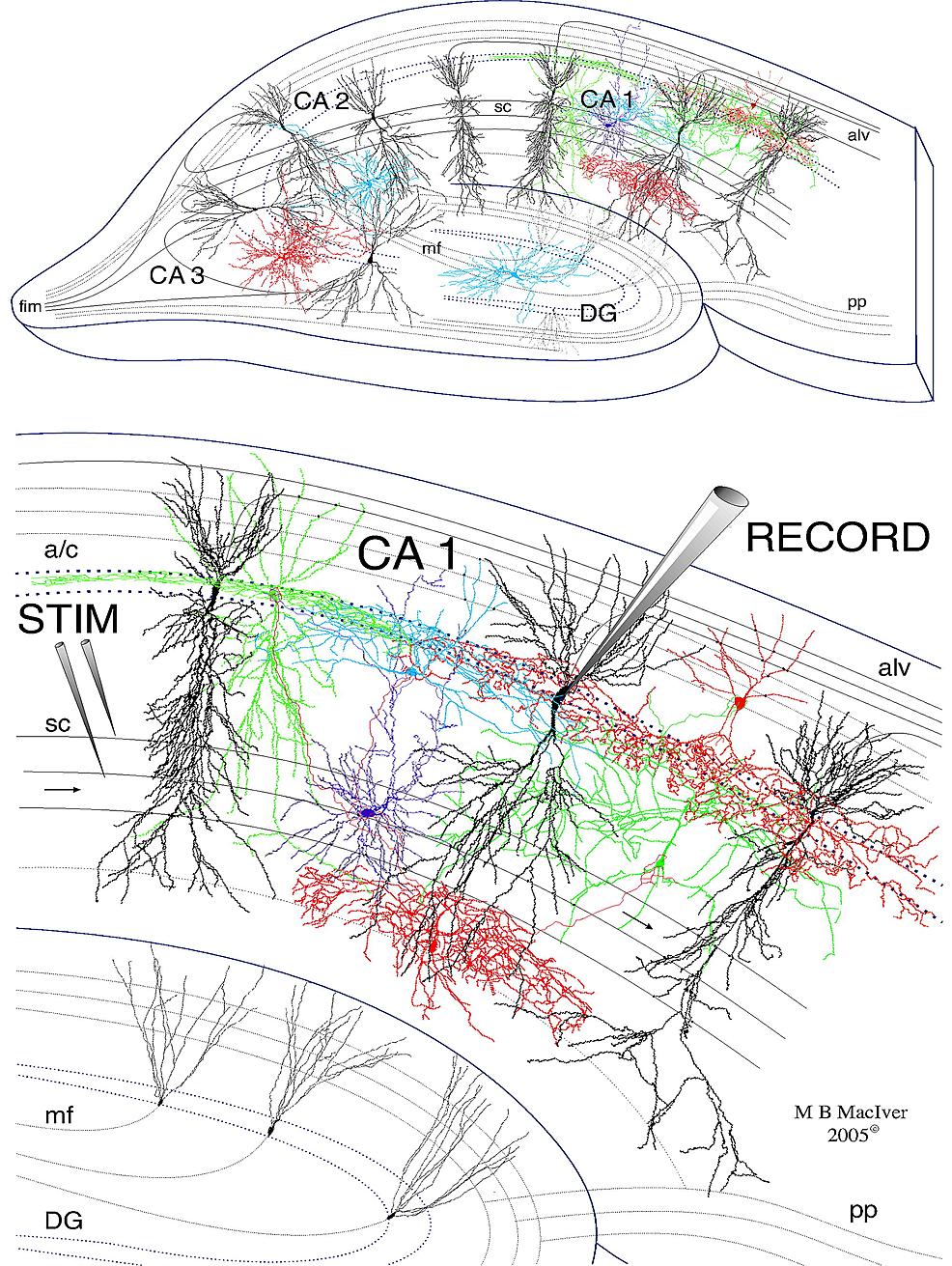

To evoke population spikes (PS), the brain slices were stimulated at the Schaffer-collateral fibers (Figure 1) using a bipolar tungsten microelectrode (Fredreick Haer, Brunswick, ME). The population spike responses from CA1 neurons were recorded by placing a micropipette recording electrode filled with ACSF at the stratum oriens and stratum pyramidale border (Figure 2). Paired pulse recordings of population spikes were conducted at 10 ms (fast) and 100 ms (slow) interpulse intervals corresponding to two different types of GABA receptor mediated inhibitory activities, GABAA slow and GABAA fast (Figure 2).







At least eight slices were harvested from each animal and population spike recordings were averaged. The experimentors as well as the surgeon who harvested the brain slices were blinded for the experiments and only during analysis period was it known which animals corresponded to sham vs irradiated subjects. Data were collected, analyzed, and stored using software running under the Igor Pro data analysis package (Mac OS 10/UNIX, Wavemetrics, OR).

Immunohistochemistry

Irradiated or sham-operated rats were deeply anesthetized and perfused transcranially with cold 0.9% saline, followed by four percent paraformaldehyde in phosphate-buffered saline (PBS) (pH 7.4) 24 or 48 hours after 60 Gy gamma radiation, n = 6 in each group. The brains were kept in four percent paraformaldehyde in PBS for three days and then cut into 50 μm coronal sections with a vibratome (VT1000S, Leica Microsystems, Wetzlar, Germany). Free-floating sections were washed in PBS and then treated with one percent H2O2 for 20 min. Nonspecific binding was prevented by incubating the sections for one hour in five percent normal goat serum in PBS containing 0.3% Triton X-100. The sections were incubated overnight at 4°C with various primary antibodies. After being washed three times in PBS, the sections were then incubated for one hour at room temperature in a relevant secondary antibody solution made up in PBS. The sections were washed and mounted on slides with Vectashield mounting medium for fluorescence containing 4′,6-diamidino-2-phenylindole (DAPI) (Vector Laboratories, Inc. Burlingame, CA) and studied by fluorescence microscopy.

Data and statistical analysis

Average first population spike amplitudes (from the 10 minute baselines) were calculated for sham and irradiated slice recordings. Paired-pulse inhibition (PPI) was examined by calculating the PPI ratio. The PPI ratio is calculated by dividing the average amplitude of the first population spike by the average amplitude of the second population spike. A post analysis of variance (post-ANOVA) Tukey test (Igor Pro; Wavemetrics) was used to examine the statistical significance for each comparison made during the analysis period.

Results

Effects on synaptic transmission

CA1 pyramidal neurons are controlled by several forms of GABA-mediated inhibiton that limit discharge activity to only a few milliseconds (GABAA fast) or for several hundred milliseconds (GABAA slow), or control the overall excitability of CA1 neurons (GABAA tonic receptors) [25-26]. Recording paired pulse inhibition of population spike (PS) responses provides a measure for each of these. Radiation effects on tonic inhibition would be seen as a change in PS amplitude. If tonic inhibition was reduced, then amplitudes would increase. Paired pulse inhibition of the second PS at 100 ms intervals provides a measure of GABAA slow inhibition (Figure 2). If GABAA fast inhibition was reduced, a secondary spike would appear (Figure 3).



Furosomide, a subtype-specific GABAA antagonist, has been shown to block GABAA fast induced pluripotent stem cells (IPSCs) [25-26], and it does so by acting on postsynaptic receptors. With the application of the GABAA fast blocker furosemide (1 mM), an extra, secondary PS is observed within 10 ms after the first PS (Figure 3). Blocking GABAA slow inhibition with gabazine (20 µM), in contrast, creates multiple PSs lasting over 100 ms (Figure 3). Gabazine has been previously characterized as being a competitive antagonist of GABAA receptors. Furthermore, Gabazine has a unique pharmacological property of blocking only phasic inhibitory postsynaptic currents (including GABAA fast and GABAA slow) but does not impact GABAergic tonic currents in CA1 neurons [27].

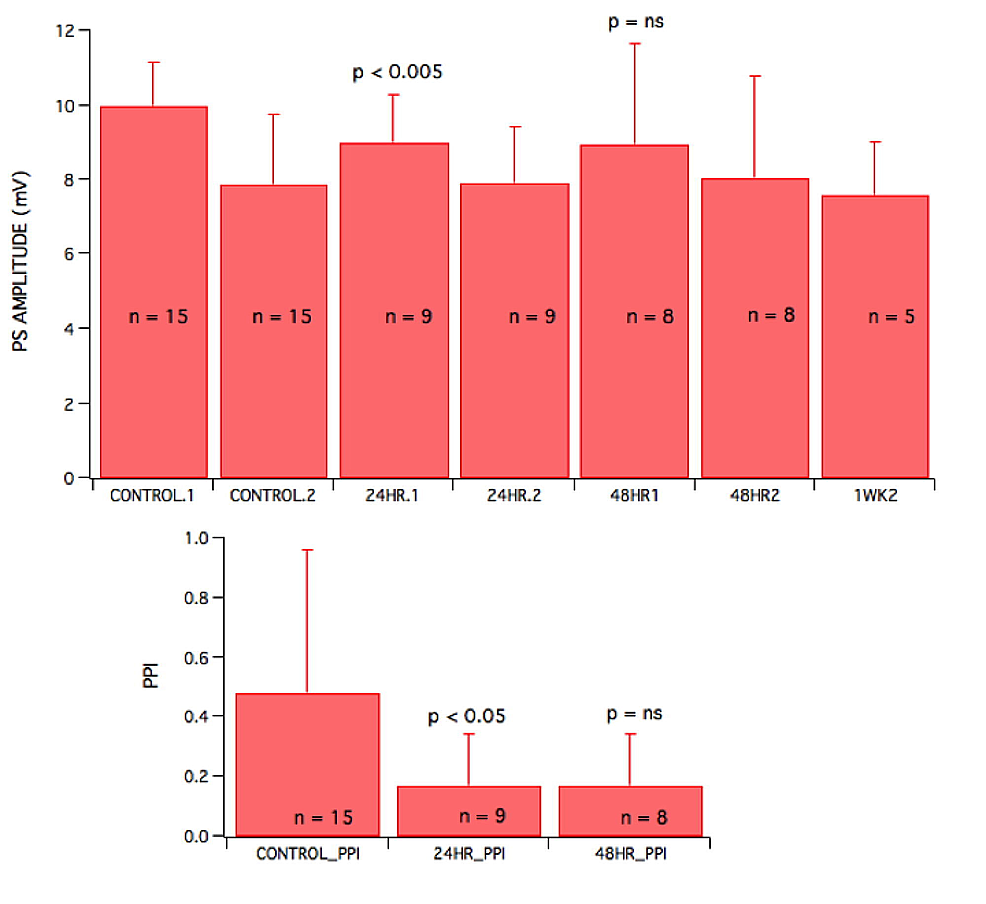

Raw signals from field recordings of slices harvested from sham and irradiated animals were compared, and effects on GABAA synaptic inhibition were tested. GABAA mediated inhibitory transmission was depressed 24 hours after irradiation (Figure 4). However, unlike when gabazine or furosemide were added, secondary, multiple or prolonged PS recordings were not present in the 24 hr group. Depressed GABAA slow inhibition was also observed in slices harvested 24 hours after gamma irradiation, evident as a 14.4% decrease in PPI when compared to sham animals (p = 0.035, n = 9) (Figure 5). Although, 48 hr animals also exhibited a decrease in PPI, it did not achieve insignificances (p > 0.05) in the sample group we compared. There was a small, but significant decrease (p = 0.002, n = 9) of the first population spike in 24 hr recordings when compared to sham irradiated brains. Again, recovery of the first PS was observed in both 48 hr (insignificant decrease with p > 0.05) and one week groups.






Effects on anatomy and immunohistochemistry

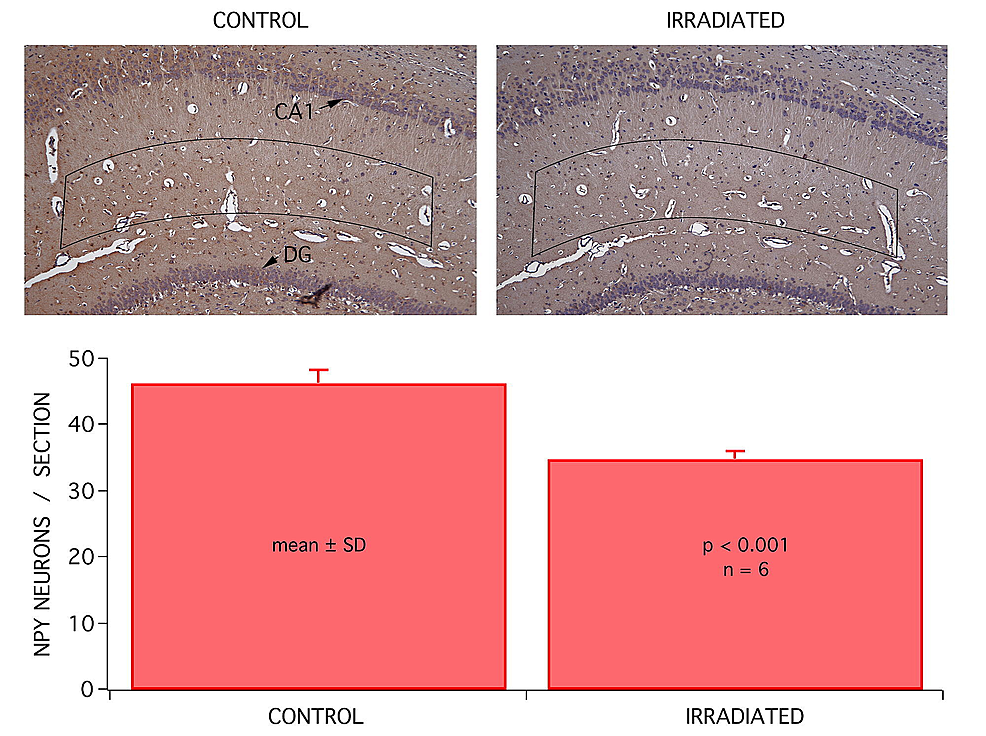

The overall appearance of brain slices was the same in control and irradiated animals. Similarly, there was no obvious difference at the microscopic level in irradiated animal tissue (Figure 6). Immunohistochemical analysis of hippocampal slices were conducted on brain slices prepared from sham and irradiated groups. Levels of distinct proteins were compared and neuropeptide Y (NPY) positive neurons exhibited a significant reduction. Compared to the sham group, the number of NPY expressed in neurons present per section of hippocampus in the CA1 region was significantly lower in 24 hr groups (p < 0.001; ANOVA, n = 6; Figure 6).



Discussion

Although many studies have looked at the behavioral and cognitive performance deficits following irradiation, only a few papers have explored the neuronal modifications at the synaptic and individual neuronal level. Even fewer have tried to examine how the anatomical changes correspond to the neuronal responses by combining immunochemical and electrophysiological investigations.

The electrophysiological results presented here do not demonstrate any major changes for PS responses at any post-irradiation time point. Exposure to 60Gy of irradiation had very little effect on synaptic transmission, neuronal excitability, or synaptic inhibition. Radiation also did not appear to alter GABAA tonic or GABAA fast inhibition, but produced a statistically significant reduction in synaptic inhibition seen at 100 ms, indicating a selective depression of GABAA slow inhibition. This was also evident in the reduction in the PPI values seen in irradiated rats. Overall, these were relatively minor effects and are consistent with earlier studies suggesting that gamma radiation has only minor and transient effects on brain tissue at clinically relevant doses (< 60 Gy). For example, a study looking at hippocampal neuron numbers showed that they remained unchanged one year after a rat was exposed to fractionated whole brain irradiation at a dose of 45 Gy applied twice a week for 4.5 weeks [7]. Although the magnitude of effects was relatively low, it could still have a physiological effect and can potentially be clinically meaningful. This idea of neuromodulation by changing neuronal behavior without affecting the physiological integrity of neuronal tissue has been of great interest to groups trying to use focally directed SRS to treat patients with various clinical disorders [28]. This review paper discussing a collection of studies looking at localized irradiation bringing treatment to patients suffering from such ailments as trigeminal neuralgia and epilepsy proposes that these minimal and mainly safe changes observed in radiomodulation can play a therapeutic role for other functional and behavioral disorders.

The results presented in this paper showed that following gamma radiation treatments, there were no physically-evident pathological effects; however, a subtle functional depression in circuit level inhibition was evident. The reduced expression of NPY in interneurons could help account for this functional depression, since NPY interneurons are known to be GABAergic and to mediate GABAA slow inhibition [29]. It is ulikely that irradiation harmed NPY interneurons, since the effect occurred too soon for this, but it is more likely that a reduction in NPY expression occurred. This change, although temporary (24 hr group), could contribute to antidepressant effects of radiation. In fact it may give us a glimpse into how radiation works in a clinical setting for use of a treatment for patients with functional conditions including major depressive disorder. Similar to what was observed in our study, antidepressants produce a statistically significant depression of GABAA slow-mediated inhibition in the rat hippocampus [30].

Conclusions

Radiomodulation of neuronal circuitry was evident as a small but statiscally significant decrease in GABA-mediated slow synaptic inhibition.


References

  1. Ayaka S, Shinichiro M, Tomokatsu H: Extracranial facial nerve schwannoma treated by hypo-fractionated cyberKnife radiosurgery. Cureus. 2016, 8:e797. 10.7759/cureus.797
  2. Safaee M, Burke J, McDermott MW: Techniques for the application of stereotactic head frames based on a 25-year experience. Cureus. 2016, 8:e543. 10.7759/cureus.543
  3. Kondziolka D, Lunsford LD, Claassen D, et al.: Radiobiology of radiosurgery: part I. The normal rat brain model. Neurosurgery. 1992, 31:271–279.
  4. Gobbel GT, Bellinzona M, Vogt AR, et al.: Response of postmitotic neurons to x-irradiation: Implications for the role of DNA damage in neuronal apoptosis. J Neurosci. 1998, 18:147–155.
  5. Bellinzona M, Gobbel GT, Shinohara C, et al.: Apoptosis is induced in the subependyma of young adult rats by ionizing irradiation. Neurosci Lett. 1996, 208:163–166. 10.1016/0304-3940(96)12572-6
  6. Mao XW, Nishiyama NC, Pecaut MJ, et al.: Simulated microgravity and low-dose/dow-dose-rate radiation induces oxidative damage in the mouse brain. Radiat Res. 2016, 185:647–657. 10.1667/rr14267.1
  7. Shi L, Molina DP, Robbins ME, et al.: Hippocampal neuron number is unchanged 1 year after fractionated whole-brain irradiation at middle age. Int J Radiat Oncol Biol Phys. 2008, 71:526–532. 10.1016/j.ijrobp.2008.02.015
  8. Pellmar TC, Lepinski DL: Gamma radiation (5-10 Gy) impairs neuronal function in the guinea pig hippocampus. Radiat Res. 1993, 136:255–261. 10.2307/3578619
  9. Pellmar TC, Schauer DA, Zeman GH: Time- and dose-dependent changes in neuronal activity produced by x radiation in brain slices. Radiat Res. 1990, 122:209–214. 10.2307/3577608
  10. Tolliver JM, Pellmar TC: Ionizing radiation alters neuronal excitability in hippocampal slices of the guinea pig. Radiat Res. 1987, 112:555–563. 10.2307/3577107
  11. Aguiar LAA, Silva IMS, Fernandes TS, et al.: Long-term correlation of the electrocorticogram as a bioindicator of brain exposure to ionizing radiation. Brazilian J Med Biol Res. 2015, 48:915–922. 10.1590/1414-431x20154473
  12. Tome WA, Gokhan S, Gulinello ME, et al.: Hippocampal-dependent neurocognitive impairment following cranial irradiation observed in pre-clinical models: current knowledge and possible future directions. Brit J Radiol. 2016, 89. 10.1259/bjr.20150762
  13. Madsen TM, Kristjansen PEG, Bolwig TG, et al.: Arrested neuronal proliferation and impaired hippocampal function following fractionated brain irradiation in the adult rat. Neuroscience. 2003, 119:635–642. 10.1016/s0306-4522(03)00199-4
  14. Raber J, Rola R, LeFevour A, et al.: Radiation-induced cognitive impairments are associated with changes in indicators of hippocampal neurogenesis. Radiat Res. 2004, 162:39–47. 10.1667/rr3206
  15. Rola R, Raber J, Rizk A, et al.: Radiation-induced impairment of hippocampal neurogenesis is associated with cognitive deficits in young mice. Exp Neurol. 2004, 188:316–330. 10.1016/j.expneurol.2004.05.005
  16. Shi L, Adams MM, Long A, et al.: Spatial learning and memory deficits after whole-brain irradiation are associated with changes in NMDA receptor subunits in the hippocampus. Radiat Res. 2006, 166:892–899. 10.1667/rr0588.1
  17. Dulcich MS, Hartman RE: Pomegranate supplementation improves affective and motor behavior in mice after radiation exposure. Evid Based Complement Alternat Med. 2013, 2013:940830. 10.1155/2013/940830
  18. Trivedi R, Khan AR, Rana P, et al.: Radiation-induced early changes in the brain and behavior: Serial diffusion tensor imaging and behavioral evaluation after graded doses of radiation. J Neurosci Res. 2012, 90:2009–2019. 10.1002/jnr.23073
  19. Chaillan FA, Devigne C, Diabira D, et al.: Neonatal gamma-ray irradiation impairs learning and memory of an olfactory associative task in adult rats. Eur J Neurosci. 1997, 9:884–894. 10.1111/j.1460-9568.1997.tb01439.x
  20. Kalm M, Karlsson N, Nilsson MKL, et al.: Loss of hippocampal neurogenesis, increased novelty-induced activity, decreased home cage activity, and impaired reversal learning one year after irradiation of the young mouse brain. Exp Neurol. 2013, 247:402–409. 10.1016/j.expneurol.2013.01.006
  21. Rao AAN, Ye H, Decker PA, et al.: Therapeutic doses of cranial irradiation induce hippocampus-dependent cognitive deficits in young mice. J Neuro-Oncol. 2011, 105:191–198. 10.1007/s11060-011-0582-9
  22. Kumar M, Haridas S, Trivedi R, et al.: Early cognitive changes due to whole body gamma-irradiation: A behavioral and diffusion tensor imaging study in mice. Exp Neurol. 2013, 248:360–368. 10.1016/j.expneurol.2013.06.005
  23. Roughton K, Kalm M, Blomgren K: Sex-dependent differences in behavior and hippocampal neurogenesis after irradiation to the young mouse brain. Eur J Neurosci. 2012, 36:2763–2772. 10.1111/j.1460-9568.2012.08197.x
  24. Denny CA, Burghardt NS, Schachter DM, et al.: 4-to 6-week-old adult-born hippocampal neurons influence novelty-evoked exploration and contextual fear conditioning. Hippocampus. 2012, 22:1188–1201. 10.1002/hipo.20964
  25. Pearce RA: Physiological evidence for two distinct GABAA responses in rat hippocampus. Neuron. 1993, 10:189–200. 10.1016/0896-6273(93)90310-n
  26. Sceniak MP, MacIver MB: Slow GABA(A) mediated synaptic transmission in rat visual cortex. BMC Neurosci. 2008, 9:14. 10.1186/1471-2202-9-8
  27. Bai DL, Zhu GY, Pennefather P, et al.: Distinct functional and pharmacological properties of tonic and quantal inhibitory postsynaptic currents mediated by gamma-aminobutyric acid(A) receptors in hippocampal neurons. Mol Pharmacol. 2001, 59:814–824. 10.1124/mol.59.4.814
  28. Schneider B, Borchers J, Adler JR: Radiation-based neuromodulation: rationale and new directions. Cureus. 2010, 2:e8. 10.7759/cureus.8
  29. Fuentealba P, Begum R, Capogna M, et al.: Ivy cells: a population of nitric-oxide-producing, slow-spiking GABAergic neurons and their involvement in hippocampal network activity. Neuron. 2008, 57:917–929. 10.1016/j.neuron.2008.01.034
  30. Choi HC, Kim YI, Song HK, et al.: Effects of selective serotonin reuptake inhibitors on GABAergic inhibition in the hippocampus of normal and pilocarpine induced epileptic rats. Brain Res. 2010, 1357:131–141. 10.1016/j.brainres.2010.08.010
